Outdoor PoE Switch with Power manager which receives power from the user PoE ports to power self and one Wireless CPE 1 x Uplink PoE port and 4 x User PoE ports Cost effective solution to deliver internet service without power back-up & battery banks at access level Store & Forwarding switching IP64 compliant weather proof enclosure In-built Lightning and surge protection Port to port Isolation between user PoE ports Input DC Power from user PoE injectors

Managed 12/16 port intelligent power manager switch with 1 Fast Ethernet optical interface

• 12/16 x 10/100 Base-T and 1 x 100 Base Fx

Power Feed from user PoE ports 4K VLAN and 8K MAC address support Per port Ingress & Egress rate-limiting Broadcast, Multicast & DLF suppression support IGMP V3 Snooping support, IGMP Proxy & MVR support MAC security with 24 static MAC entries per port Single port loopback detection and LLDP support Link aggregation & double tagging support Maximum distance up to 100 Kms on single mode - single & dual fibers In-band and Out of band management support Management through Console, Telnet, SNMP support & LITEVIEW NMS

Managed 12/16 port intelligent power manager switch with 1 Fast Ethernet optical interface

• 12/16 x 10/100 Base-T and 1 x 100 Base Fx

Power Feed from user PoE ports 4K VLAN and 8K MAC address support Per port Ingress & Egress rate-limiting Broadcast, Multicast & DLF suppression support IGMP V3 Snooping support, IGMP Proxy & MVR support MAC security with 24 static MAC entries per port Single port loopback detection and LLDP support Link aggregation & double tagging support Maximum distance up to 100 Kms on single mode - single & dual fibers In-band and Out of band management support Management through Console, Telnet, SNMP support & LITE VIEW NMS

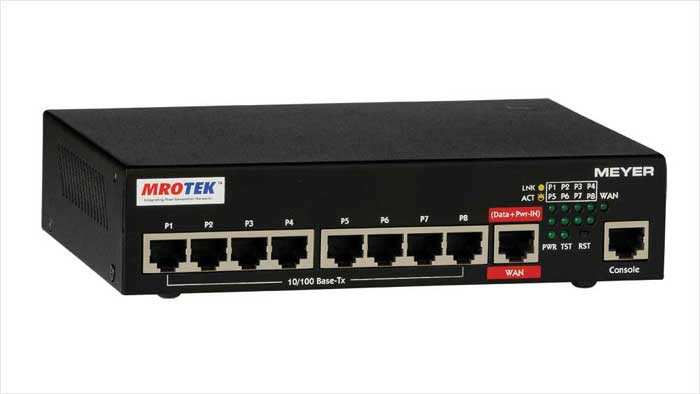

Centrally powered Managed 8 port L2 switch with one long reach PoE uplink port 8 x Fast Ethernet port and 1 x Long Reach PoE port Line cards with The maximum distance between GREEN BOX-CO & MEYER is up to 500 meters on CAT5/5E infrastructure 4K VLAN and 8K MAC address support Per port Ingress & Egress rate-limiting Broadcast, Multicast & DLF suppression support IGMP V3 Snooping support, IGMP Proxy & MVR support STP, RSTP, MSTP and IEEE 802.3ah OAM support RMON & QoS support MAC security with 24 static MAC entries per port Single port loopback detection and LLDP support Maximum distance up to 500Kms on CAT-5/5E single mode - single & dual fibers Management through Console, Telnet, SNMP support & LITEVIEW NMS Powered by GREEN BOX-CO via long reach PoE port
