Outdoor Wi-Fi Access Point/CPE supports b/g clients Optimal design with built-in 10dBi +/- 45’ cross-polarized antennas Transmit & Receive Antenna diversity Operation mode: Access Point, CPE & Repeater mode Mounting: Desktop/Pole/Wall/Window-mounted Bandwidth rate limit option Automatic Channel Assignment for ease of installation Compliant with IP55 weatherproof standards for direct outdoor installation LED indication for Power, Ethernet and 8-level Signal Strength Management through Web browser, SNMP and LITEVIEW NMS Power source: Using PoE injector

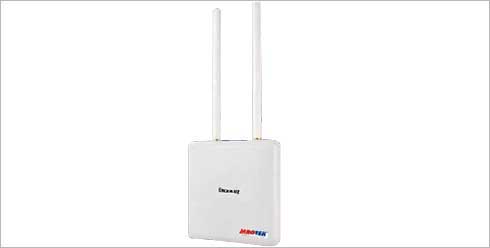

Standalone access point for campus area coverage supporting b/g/n clients 2 x 2.4GHz External antenna ports and one 5.8GHz built-in antenna Ideal for extending Wi-Fi coverage or filling in coverage holes under Exora-08 Low cost access point to expand the network user and throughput capacity Wi-Fi Standards: 802.11a/b/g/n Supports data rate up to 300Mbps on 2.4GHz & 5.8GHz Operation Mode: Access Point / Bridge Up to 300Mbps data rate support in IEEE 802.11n mode Light-weight and IP67 weatherproof design with built-in lightning protection Lightning Protection IEC 1000-4-2 / Instant Surge 4kV Management through Web browser, SNMP and LITEVIEW NMS 48V DC power by power injector

Outdoor Wi-Fi Base Station which utilizes Smart Antenna technology to provide Wi-Fi access in 360 Degree 4 x 2.4GHz 14dBi gain sector antennas with Smart Antenna Technology 1 x 5.8GHz External antenna for back-haul Conforming to IEEE 802.11a/b/g standards Simultaneous Dual band radio with 802.11b/g (access) and 802.11a (backhaul) Adjustable Tx power per sector 5-25 dBm (in 1dB step) Bandwidth Control - Airtime/ Throughput Backhaul resilience and 1+1 protective switching IP67 Weatherproof housing with built-in lightning protection EN 61000-4-5 Automatic Channel Assignment Dual Diversity Advanced Smart Antenna for flexible 90’ to 360’ coverage with minimal holes Multi-Radio for maximizing performance and providing access redundancy Backhaul Resilience & 1+1 Protective Switching for guaranteed access Adaptive Interference Control to mitigate interference effects under any site conditions Mounting: Pole or wall-mounted Management through Web browser, SNMP and LITEVIEW NMS AC power supply, optional PoE injector

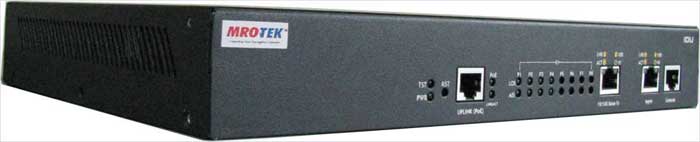

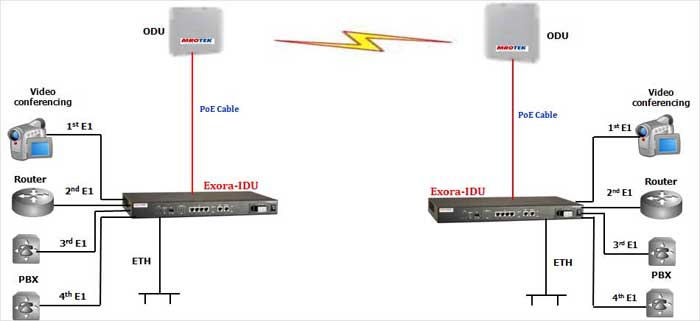

Cost-effective wireless E1 transport system Up to 4 x E1 interface Frequency band : 5.8 GHz Built-in patch panel antenna with 23dBi and 29dBi gain High system gain with lesser noise Management of Local IDU and ODU & Remote ODU Timing : Maintains synchronization between devices by deploying advanced clock distribution mechanisms

• Internal : Internal Oscillator provides the master clock for the devices
• Loopback : The transmit Clock is derived from the respective port's receive clock.
• Adaptive : Clock is recovered from the Ethernet Network Interface

Management via Console, Telnet, SNMP and LITEVIEW NMS AC/DC power supply options for IDUs
