Unmanaged Fast Ethernet media converter which supports 10/100Base-Tx to 100Base-Fx media conversion 1 x 100 Base-FX (SC) optical port and 1 x Fast Ethernet port Speed (Auto, 10/100 Mbps), Duplex (Full/Full) selection via dip switch Link fault pass through support Transparent pass through for VLAN Tagged and untagged user traffics Link, Activity & Speed LED indications Multimode, Single mode & Single fiber options Maximum distance up to 100Kms on Single Fiber Works opposite with OAK-13 chassis and standard 3rd party switches and media converters Available in 230 VAC, 24VDC, 48VDC & 9VDC via adaptor power supply ordering options

Unmanaged Gigabit Ethernet media converter which supports 1000Base-Tx to 1000Base-Fx media conversion 1 x 1000 Base-FX (SC) optical port and 1 x Gigabit Ethernet port Link fault pass through enable/disable using dip switches Transparent pass through for VLAN Tagged and untagged user traffics Multimode, Single mode & Single fiber options Power, Link & Activity, FEF, LFP LED indications Multimode, Single mode & Single fiber options Works opposite with OAK-13 chassis and standard 3rd party switches and media converters AC & DC ordering options

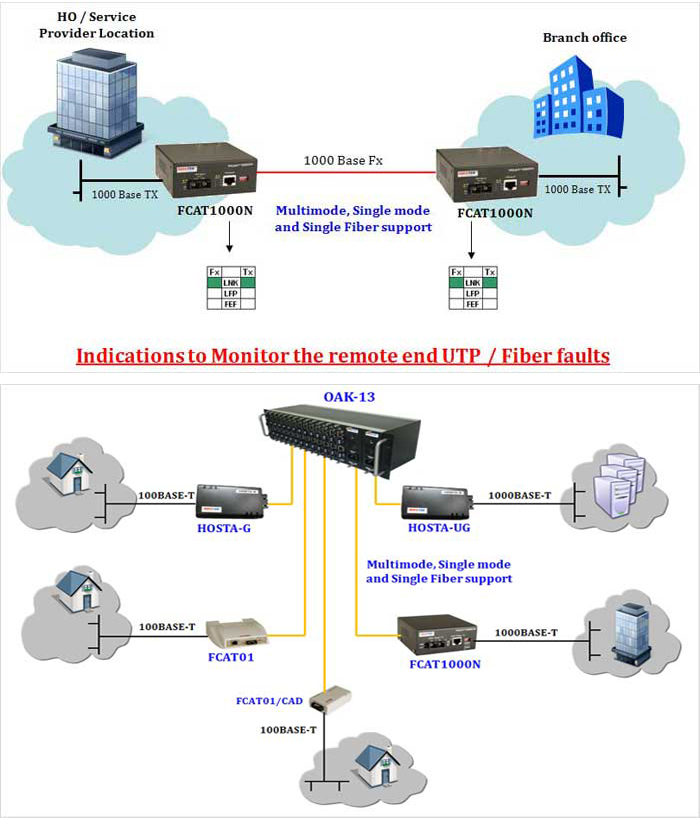

Unmanaged Media converter chassis with dual power supply and Fast & Gigabit Media converter I/O cards 13 x Line cards (Fast & Gigabit module) and 2 x Power supply modules Line cards with      • a) Two - 1000Mbps (GE) Media converters      • b) Two - 10/100Mbps (Fast Ethernet) media converter Maximum of 23 Gigabit Ethernet or Fast Ethernet media conversions from a single rack SC Fiber interfaces on I/O modules LED indications for Link/Activity, Speed & Power supply status Power supply and Line cards are hot swappable Maximum distance up to 100Kms on single mode - single & dual fibers Support FCAT01, HOSTA-G, HOSTA-UG, FCAT1000N remote CPEs opposite with Fast & Gigabit media converter cards AC & DC Ordering options

Unmanaged Gigabit Ethernet media converter which supports 10/100/1000Base-Tx to 1000Base-Fx media conversion 1 x 1000 Base-FX (SC) optical port and 1 x 10/100/1000Mbps Ethernet port Link fault pass through enable/disable using dip switches Transparent pass through for VLAN Tagged and untagged user traffics Jumbo frame support Multimode, Single mode & Single fiber options Power, Link & Activity, FEF, LFP LED indications Multimode, Single mode & Single fiber options AC & DC ordering options

Single channel stand-alone media converter Complies to IEEE, IEEE802.3z Media Conversion from 1000BASE-T to 1000BASE-FX Auto MDI-I/MDI-X copper Ethernet port RJ-45 connector for 1000BASE-T port & SC connector for 1000BASE-X fiber port Transparent Pass-through Tagged & untagged data traffic Supports Copper FEF Indication & Fiber FEF Indication DIP switch configuration for enabling LPF Multimode, Single mode & Single fiber support LFP (Link Fault Pass through) allows the fiber failure to be propagated to the copper port and vice-versa

Single channel stand-alone media converter Complies to IEEE, IEEE802.3z Media Conversion from 1000BASE-T to 1000BASE-FX Auto MDI-I/MDI-X copper Ethernet port RJ-45 connector for 1000BASE-T port & SC connector for 1000BASE-X fiber port Transparent Pass-through Tagged & untagged data traffic Supports Copper FEF Indication & Fiber FEF Indication DIP switch configuration for enabling LPF Multimode, Single mode & Single fiber support LFP (Link Fault Pass through) allows the fiber failure to be propagated to the copper port and vice-versa
